Description

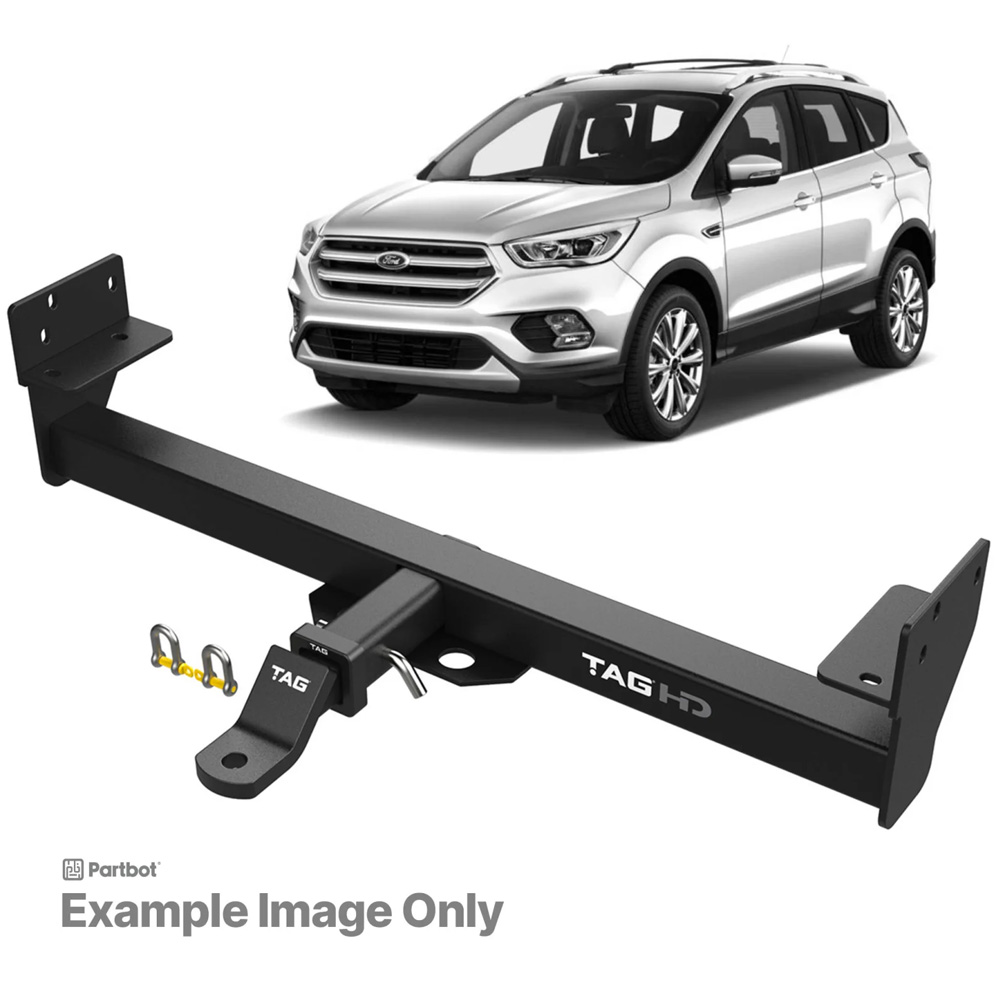

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:
- Factory Mounting Points for ease of fitment
- Durable Enamel Immersion Dipped finish.
- Class 4,50mm x 50mm Hitch Receiver
- TAG Limited Lifetime Warranty
- Towbar includes – Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles
SPECIFICATIONS:
- Towbar Class: Heavy Duty
- Towing Capacity [kg]: 1800
- Ball Weight [kg]: 180
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4180
- Coating: Enamel Immersion Dipped
- Remove Bumper: Yes
- Bumper Cut Out Required: Yes
- Exposure: Concealed
- Fitting Time Approx: 1.5 hr
- Fits Vehicle Year To (Month): 04
- Fits Vehicle Year To: 2020
VEHICLES:
Make | Model | Series | Year From | Year To | Body | Notes | Engine | Engine Capacity | Variant | Transmission | Cylinders |
---|---|---|---|---|---|---|---|---|---|---|---|
FORD | ESCAPE | ZG | 2016 | 2020 | SUV | M9MA | 1.5L | EcoBoost | 4 | ||
FORD | ESCAPE | ZG | 2016 | Wagon | M9MA | 1.5L | AMBIENTE | 4 | |||
FORD | ESCAPE | ZG | 2016 | Wagon | M9MA | 1.5L | AMBIENTE | 4 | |||
FORD | ESCAPE | ZG | 2016 | Wagon | T8MB | 2.0L | 4 | ||||
FORD | ESCAPE | ZG | 2016 | Wagon | M8MA | 1.5L | 4 | ||||
FORD | ESCAPE | ZG | 2016 | Wagon | TPMB | 2.0L | 4 | ||||
FORD | ESCAPE | ZG | 2016 | 2020 | SUV | M8MA | 1.5L | EcoBoost | 4 | ||
FORD | ESCAPE | ZG | 2016 | 2020 | SUV | M9MA | 1.5L | EcoBoost | 4 | ||
FORD | ESCAPE | ZG | 2016 | 2020 | SUV | T8MA, T8MB | 2.0L | TDCi | 4 | ||
FORD | ESCAPE | ZG | 2016 | 2020 | SUV | TPWA | 2.0L | 4 |
NOTE: Price liste is for supply only. Wiring and Fitting Charges are extra. Please contact us for quotation for both supply and installation. (02 9569 4217) or Email: service@fastfitbullbars.com.au
STOCK LEVELS MAY VARY. PLEASE CHECK BEFORE ORDERING.
