Short Shank Extra Heavy Duty Adjustable Ballmount Rated To 4000kg 12 StagesShort Shank Extra Heavy Duty Adjustable Ballmount Rated To 4000kg 12 Stages

Short Shank Extra Heavy Duty Adjustable Ballmount Rated To 4000kg 12 Stages

$365.00

SKU: FF-MHABM-5XHDS Category:

Description

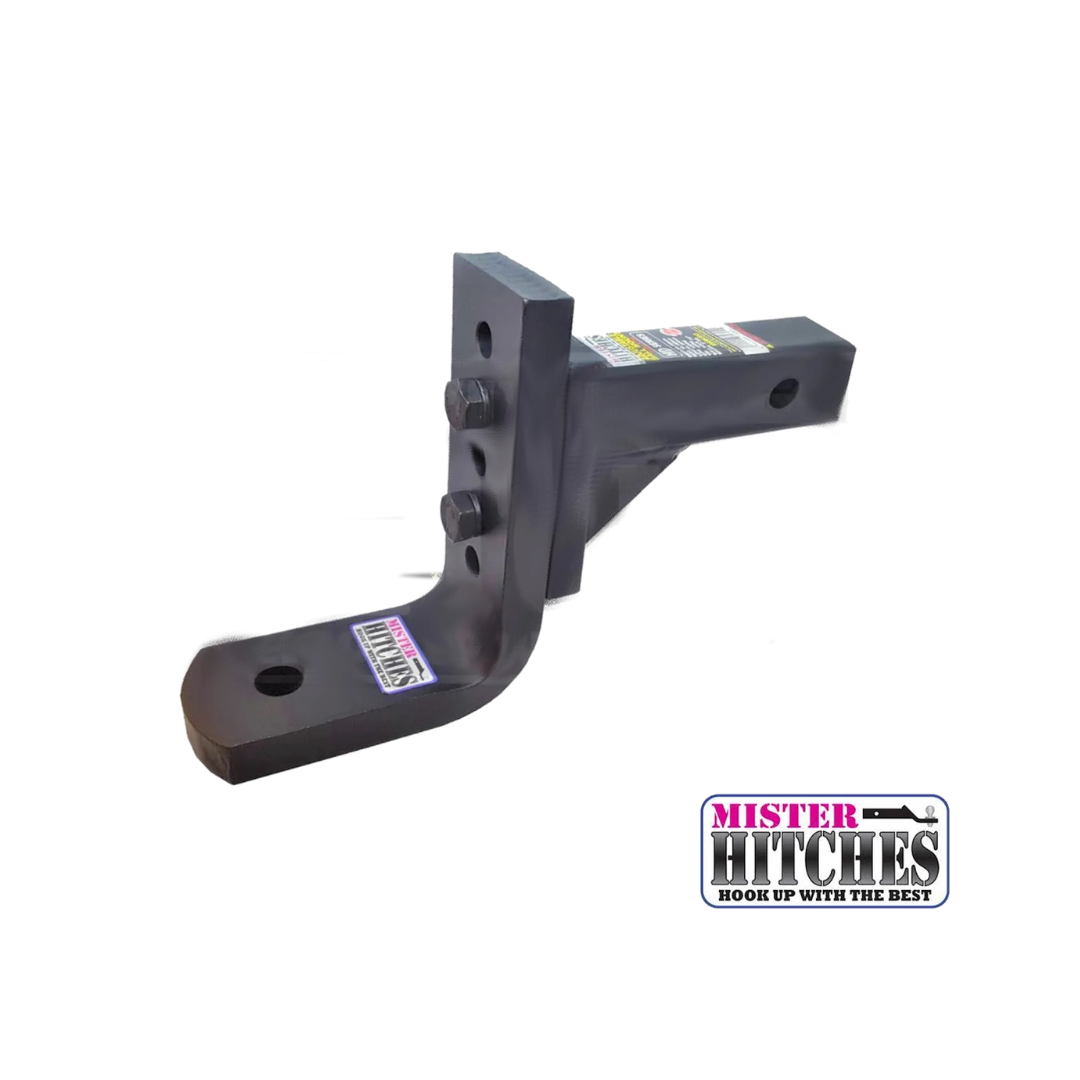

Short Shank Extra Heavy Duty Adjustable Ballmount Rated to 4000kg 12 Stages

PLEASE NOTE: 3500kg when using 50mm Towball

New model with short shank length. Compatible with Genuine Ford Ranger Towbar.

Suits all 50 x 50 hitch receivers

  • Adjustable & Reversible – 12 Stages
  • 6 Stages of Drop – 80mm/110mm/130mm/140mm/160mm/190mm
  • 6 Stages of Rise – 50mm/80mm/105mm/110mm/135mm/165mm
  • 10mm Dual support gussets for added strength
  • Uses 12.9 Grade High Tensile 16mm bolts
  • 25mm x 75mm Heavy Duty ball platform
  • Matt Black Seaguard Finish
  • Robotic Welded for consistent quality
  • CNC Machined for maximum accuracy
  • Fits 2″ x 2″ Towbar receivers

Gross Trailer Weight: 4000kg

Tongue Weight: 400kg

Ball Hole Size: 7/8″

Max Drop: 190mm (taken from top of reciever)

Max Rise: 165mm (taken from top of reciever)

Lengths: (Centre of pin hole to centre of ball hole) 262mm

Pin Holes to end of shank: 50mm

End of Shank to Gusset: 120mm

Suits Stone Stomper and Most Couplings EG. D035

Measurements are Approximate

NOTE: Listed Price is for Supply only. Fitting Charges & Accessory not included in the price. If you need a quote for both supply and installation please contact us (02 9569 4217) Email: service@fastfitbullbars.com.au

STOCK LEVELS MAY VARY. PLEASE CHECK BEFORE ORDERING.

Additional information

Weight 5 kg
Dimensions 16 × 10 × 10 cm
