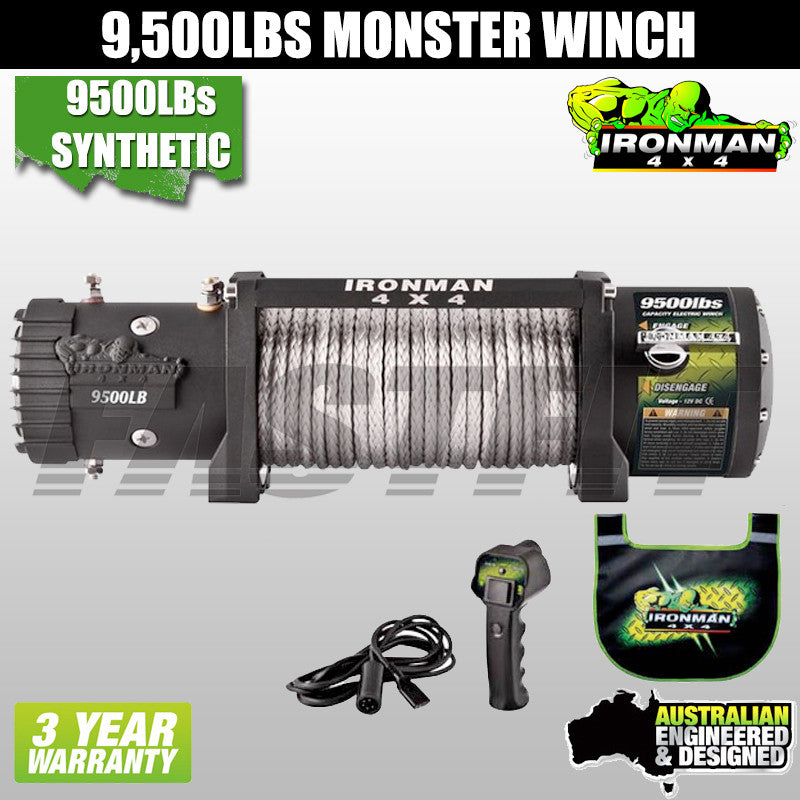

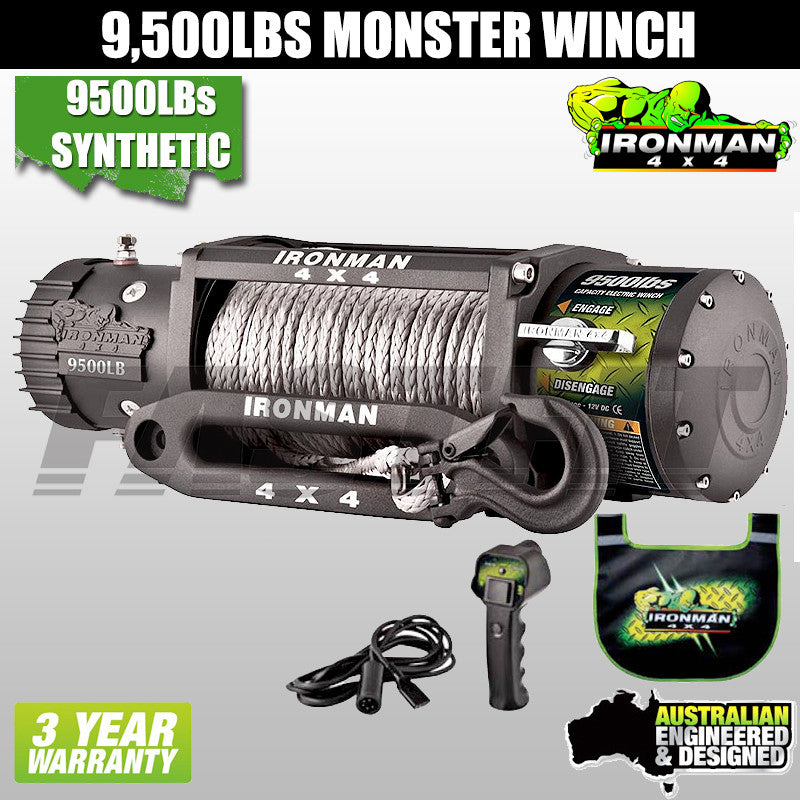

Ironman4x4 9,500LB 12V Electric Monster Winch – Synthetic Rope


SKU: WWB9500SR Category:


The Ironman 4×4 MONSTER WINCH IS BACK, with a tough new look and a tonne of new features! Designed and developed right here at Ironman 4×4 Australia, our latest Monster Winch range are a must have accessory for your four wheel drive!

12v winches are some of the most effective tools you can have fitted to your 4×4. Perfect for pulling your 4×4 out of a bog, up a hill or through a section that isn’t save to drive. Winches are also useful tools used for removing fallen trees of other obstacles blocking your path.

Over the years Ironman 4×4 has spent significant time developing and improving it’s range of winches. With the only winches in the market to come from the factory with a breather on the motor as well as many other class leading features.

Never leave home again without the security and peace of mind offered by an Ironman 4×4 winch.

The Ironman 4×4 Monster Winch has evolved! Totally redesigned and upgraded, Ironman Monster winches include stronger motors, heavy duty casings, synthetic ropes, competition style solenoid and are the only winch on the market with a motor breather.

Designed and developed right here at Ironman 4×4 Australia, our latest Monster Winch range are a must have accessory for your four wheel drive!


  • Heavy duty design – Steel / Alloy construction, durable black powdercoated finish.
  • Dual remote controlled – Wireless & plug-in remote controlled functionality.
  • Remote motor breather – Greater motor protection against moisture
  • State-of-the-art solenoid design – Ultra reliable, sealed single solenoid.


  • Motor : 5.5HP / 4.1KW
  • Power : 12VDC
  • Weight : 28kg
  • Wireless Remote Range : 30.5m
  • Remote Lead Length : 3.6m
  • Gear Train : 3 Stage Planetary
  • Gear Reduction Ratio : 265:1
  • Brake : Automatic Camp Lock (In Drum)
  • Steel Cable Dimensions : 28m x 8mm
  • Overall Dimensions : 540mm (L) x 165mm (H) x 150mm (W)
  • Mounting Bolt Pattern : 254mm x 114.3mm
  • Notes : Minimum Battery for winching – 650CCA



Additional information

Weight 40 kg
Dimensions 65 × 33 × 33 cm
