DESCRIPTION:

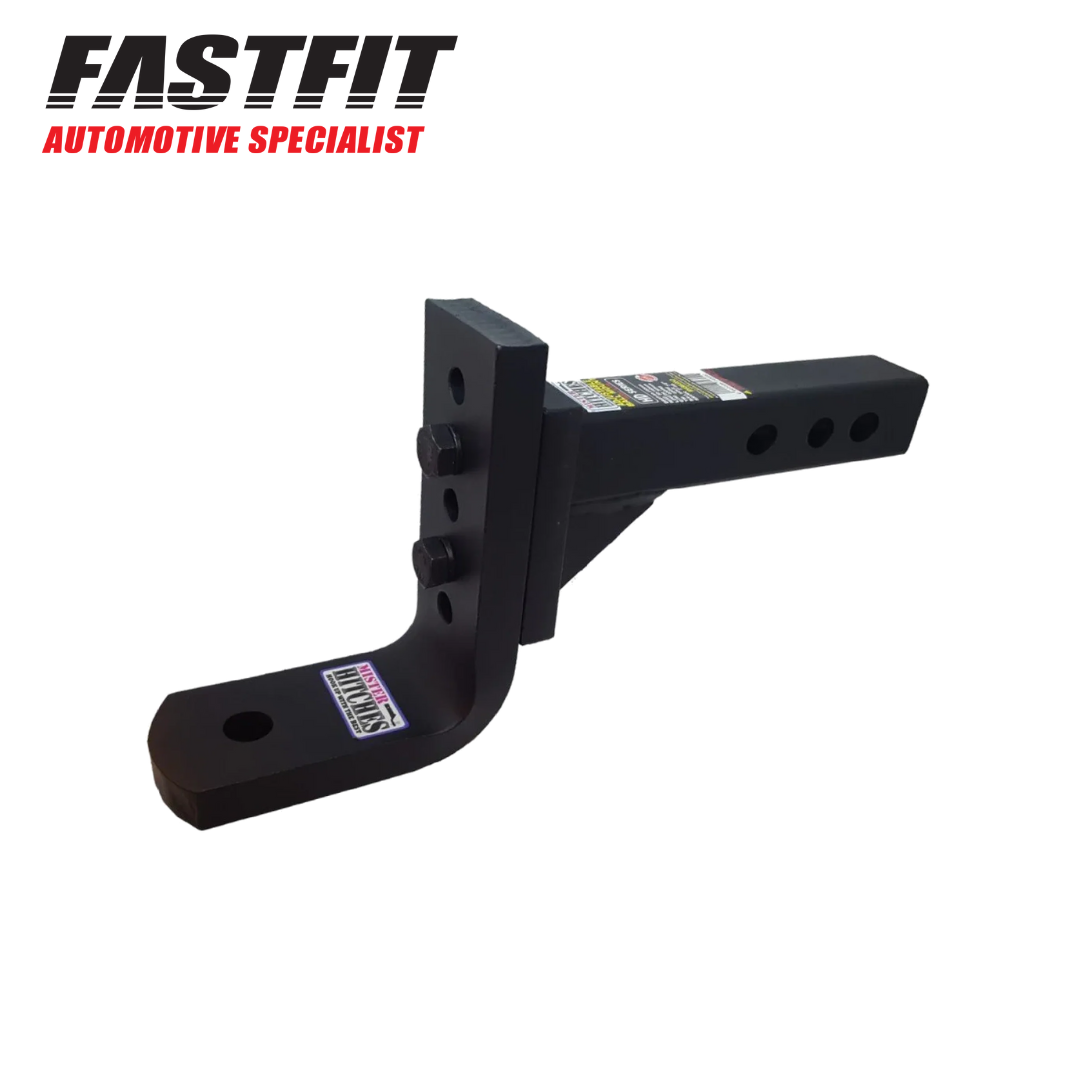

Extra Heavy Duty Adjustable Ballmount Rated to 4000kg 12 Stages
PLEASE NOTE: 3500kg when using 50mm Towball
Suits all 50 x 50 hitch receivers
- Adjustable & Reversible – 12 Stages
- 6 Stages of Drop – 80mm/110mm/130mm/140mm/160mm/190mm
- 6 Stages of Rise – 50mm/80mm/105mm/110mm/135mm/165mm
- 10mm Dual support gussets for added strength
- New model with 3 pin holes (Ranger short shank compatible)
- Uses 12.9 Grade High Tensile 16mm bolts
- 25mm x 75mm Heavy Duty ball platform
- Matt Black Seaguard Finish
- Robotic Welded for consistent quality
- CNC Machined for maximum accuracy
- Fits 2″ x 2″ Towbar receivers
Gross Trailer Weight: 4000kg
Tongue Weight: 400kg
Ball Hole Size: 7/8″
Max Drop: 190mm (taken from top of reciever)
Max Rise: 165mm (taken from top of reciever)
Lengths: (Centre of pin hole to centre of ball hole) 266mm / 305mm / 331mm
Pin Holes to end of shank: 50mm, 76mm, 115mm
End of Shank to Gusset: 164mm
Suits Stone Stomper and Most Couplings EG. D035
Measurements are Approxomate
