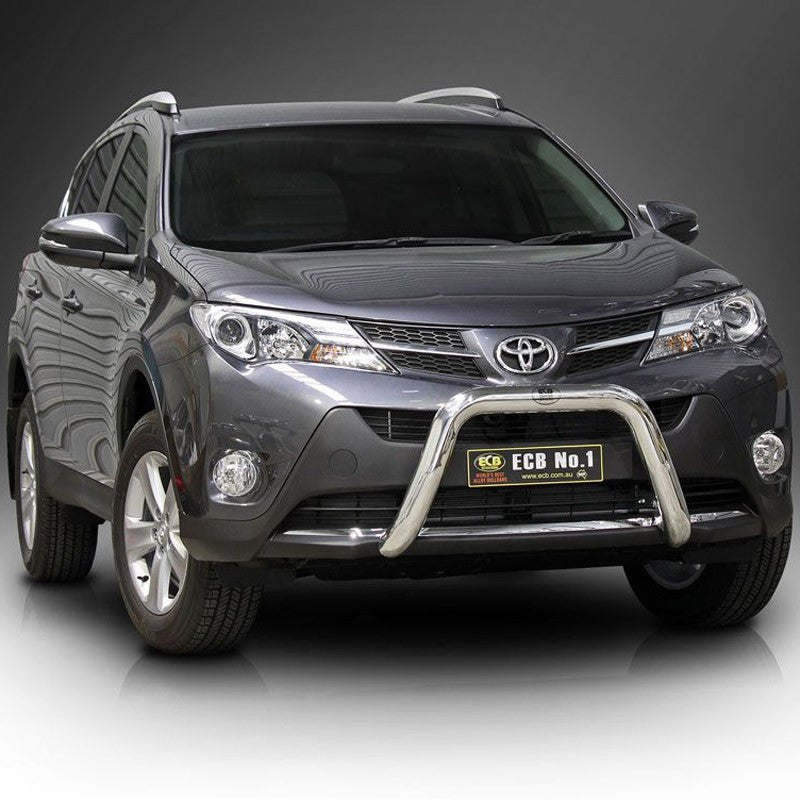

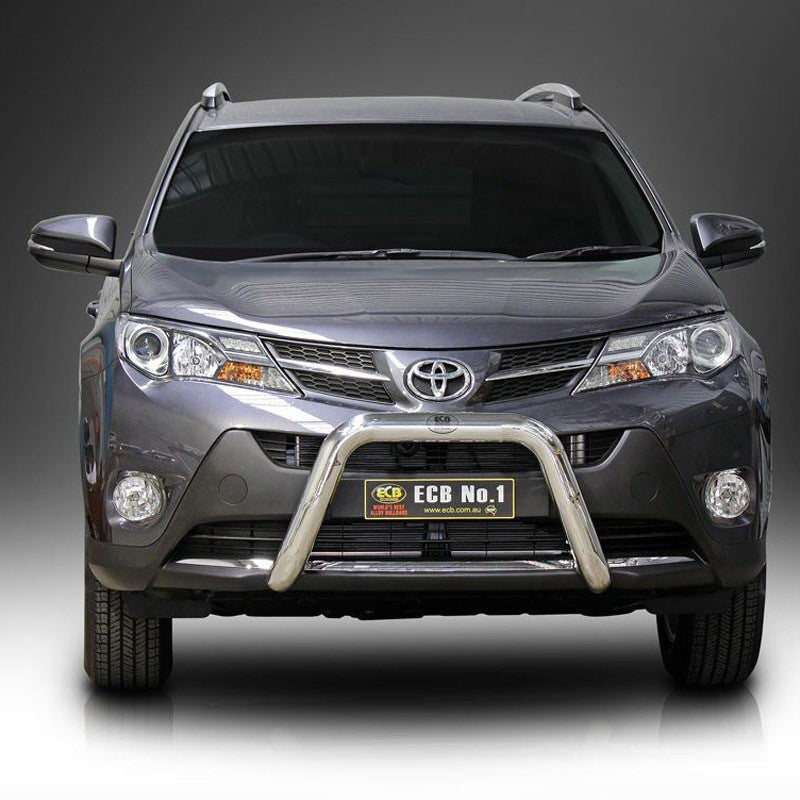

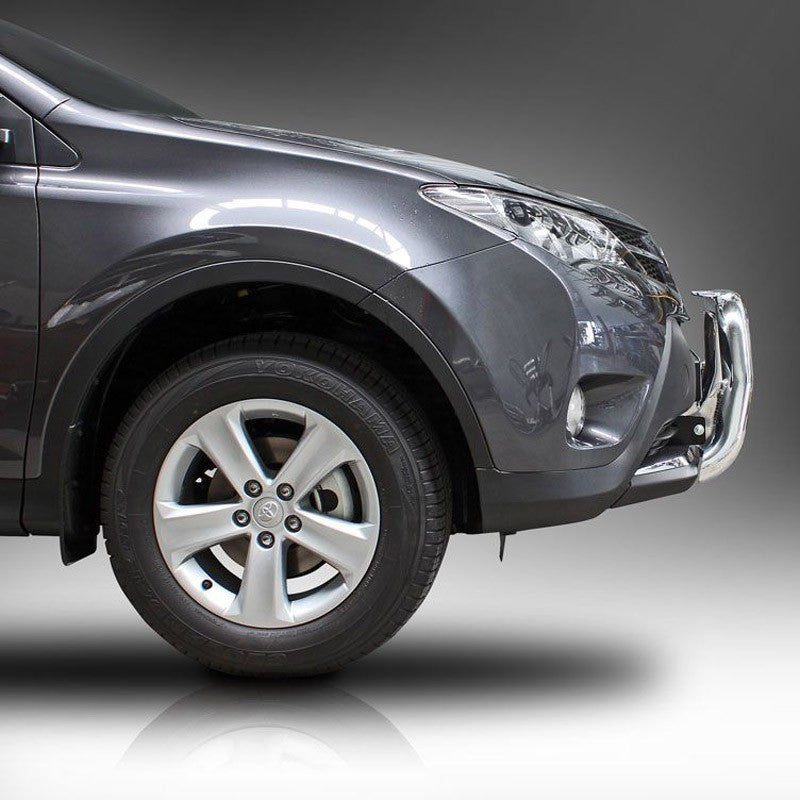

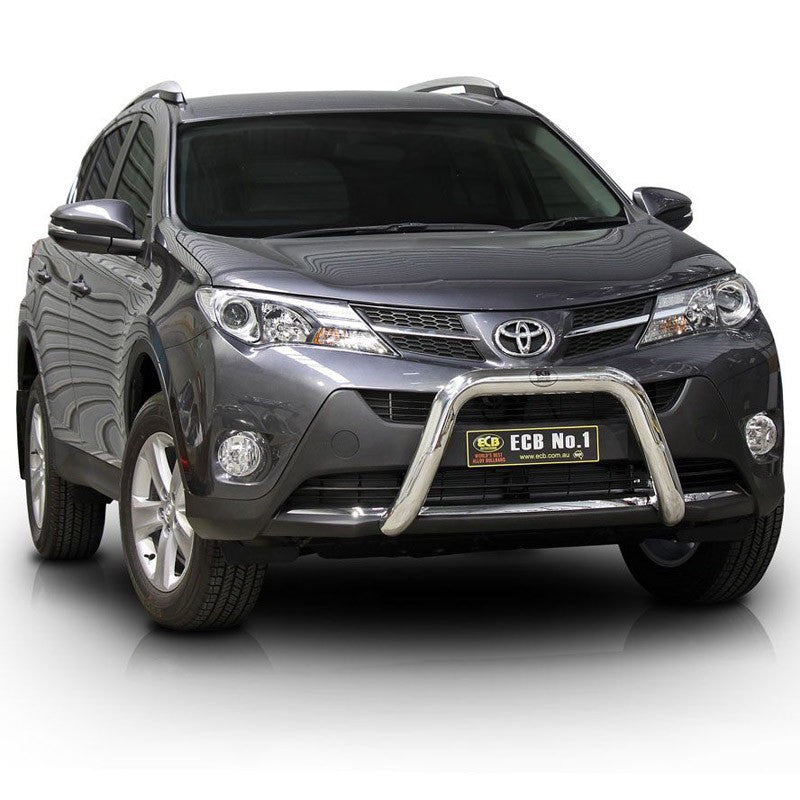

ECB 76mm Polished Alloy Nudge Bar to suit Toyota RAV4 2/2012 to 09/2015


SKU: NBT130SYP Category:



  • Spot Light mounting Tabs/Provision
  • Lifetime Warranty
  • Hi-Tensile Structural Grade Alloy
  • ADR & Air Bag Compliant


TOYOTA RAV4 12/12 to 09/15

Impact protection is just one of the benefits of this eye-catching 76mm Nudge Bar to suit the Toyota RAV 4. Designed and manufactured in Australia to protect your vehicle against the harsh Australian environment, this 76mm Nudge Bar is formed through a mandrel bending process from 76mm x 4.75mm high tensile alloy tubing and will never corrode or rust. Each ECB Nudge Bar is designed to suit each individual model; therefore you can be assured of an aesthetically pleasing, functional and reliable design. This 76mm Nudge Bar comes complete with spotlight mounting provisions and a specifically designed steel mounting system. To complete a great looking performance product, choose from ECB’s range of superior, low maintenance powdercoated finishes, or the ever-popular mirror polished alloy finish.


  • Distance added to vehicle : 100mm
  • Nett weight added to vehicle : 12 kg
  • Spotlight height allowance : N/A
  • Spotlight width allowance : 273 mm (centre to centre)
  • Spotlight tab distance to vehicle : 20mm
  • Maximum Spotlight weight : 1.75 Kg per tab
  • Material Specifications :

Tube: 76mm(d) x 4.7mm(t)
T6 Hi -Tensile Alloy
Steel Mounts: 8mm Thick, plasma Cut

NOTE: Listed Price is for Supply only. Fitting Charges & Accessory (Winch , Round LED Driving Lights if required) not included in the price. If you need a quote for both supply and fitting please contact us ( 02 9569 4217 ) or Email: service@fastfitbullbars.com.au


Additional information

Weight 14 kg
Dimensions 101 × 40 × 69 cm









East Coast Bullbars are the leading manufacturer of alloy frontal protection products, which are designed and manufactured right here in Australia. East Coast Bullbars utilise a hi-tensile alloy, which is industry leading in thickness and strength that have been proven in their products for almost 50 years. ECB’s frontal protection products are designed and built to maximise strength and protection in the event of an animal strike and the hi-tensile alloy performs extremely well under stress to provide the best protection for you, your family, and your vehicle, that will never rust, and avoid corrosion. ECB’s hi-tensile alloy consistently maintains the best protection for your vehicle now and long into the future. Additional Benefits of an Alloy East Coast Bullbar include:
  • Exclusive Lifetime Warranty
  • ADR Compliant & Airbag Compatible
  • Australian Made
  • Hi-Tensile Alloy With Industry Leading Material Thickness
  • Specifically Engineered 8mm Steel Mounts
  • LED Indicator/Park lights/DRL’s
  • Premium Range of Finishes
  • Won’t affect New Vehicle Warranty
  • Almost 50 years experience in the Industry
  The ECB bull bar is a prime example of their commitment to safety and quality. ECB’s hi-tensile alloy consistently maintains the best protection for your vehicle now and long into the future. Incorporating the ECB bullbar into your vehicle ensures enhanced safety with its superior design and construction.
