Description

FEATURES:

Steel Mounting Brackets
Spot Light mounting Tabs/Provision (1.75kg Max Weight)
Lifetime Warranty
Hi-Tensile Structural Grade Alloy
ADR & Air Bag Compliant

SPECIFICATIONS:

Distance added to vehicle : 100mm
Nett weight added to vehicle : 11kg
Spotlight width allowance : 365mm (Center to Center)
Spotlight tab distance to vehicle: 20mm
Maximum Spotlight weight : 1.75 kg Per Tab
Material Specifications:Â
- Tube: 76mm(d) x 4.7mm(t)
- T6 Hi -Tensile Alloy
- Steel Mounts: 8mm Thick, plasma cut

SUITABLE FOR:

GREAT WALL X200 01/12 to /14
GREAT WALL X240 03/11 to /14

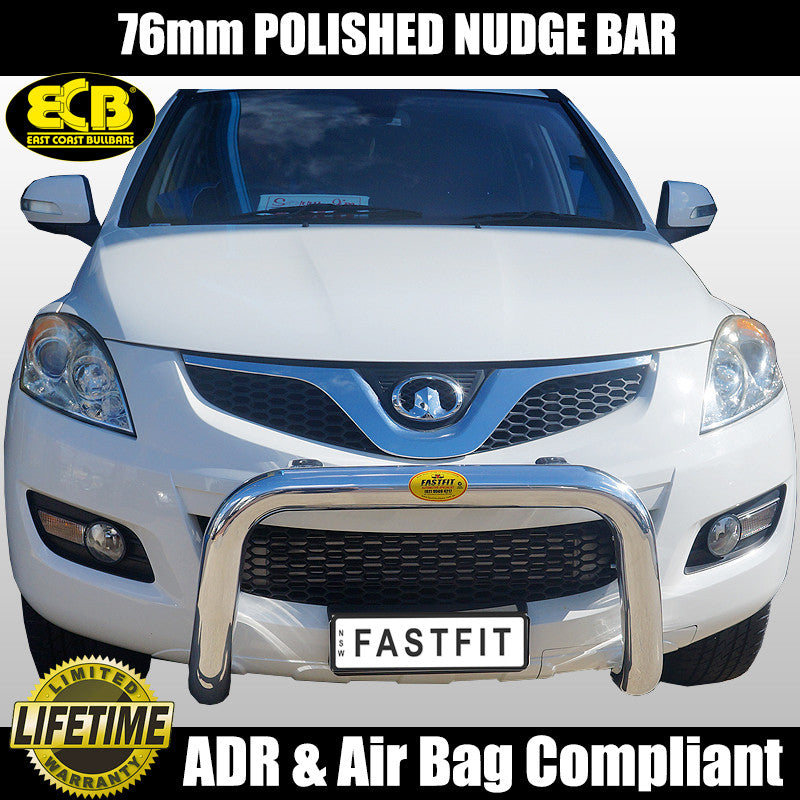

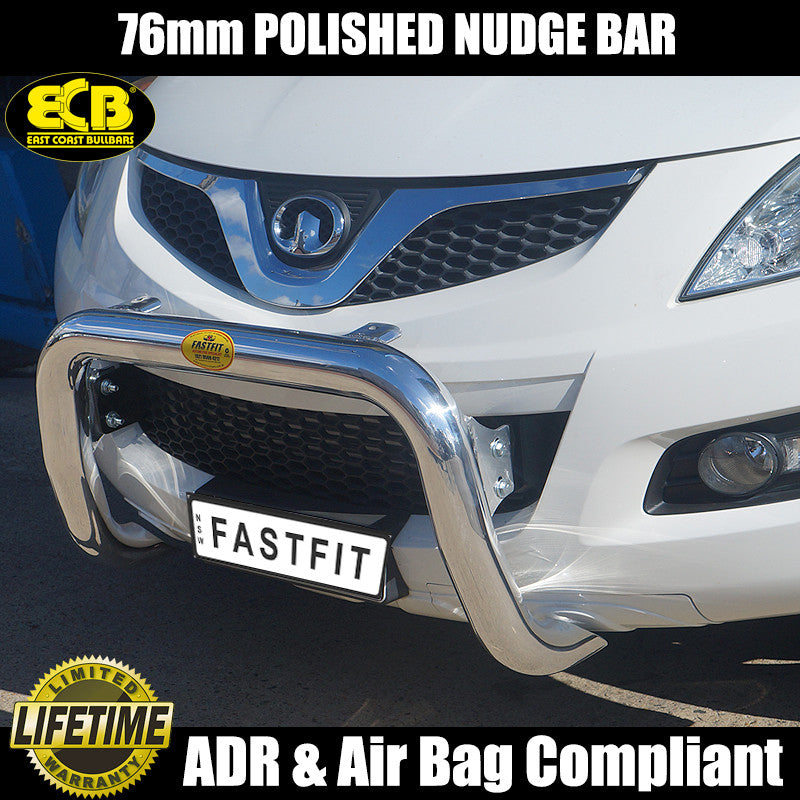

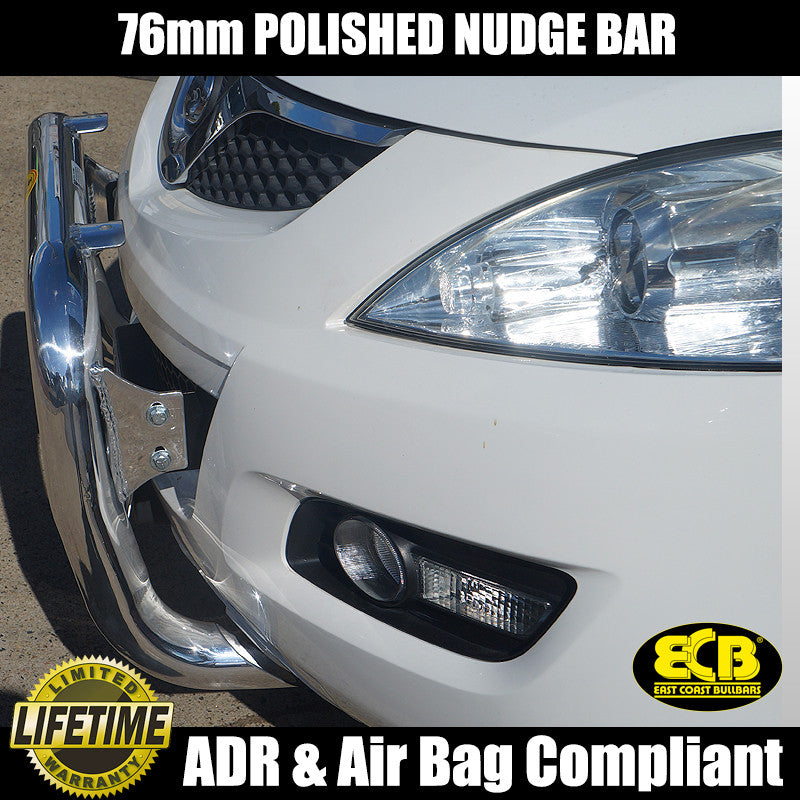

Impact protection is just one of the benefits of this eye-catching sporty 76mm Nudge Bar. Designed and manufactured in Australia to suit our harsh Australian conditions, these 76mm x 4.7mm Nudge Bars are form from high tensile alloy tubing and will never corrode or rust. Each ECB Nudge Bar is designed to suit each individual model; therefore you can be assured of an aesthetically pleasing, functional and reliable design. These 76mm Nudge Bars come complete with spotlight mounting provisions, together with a choice of polished or powder coated alloy finishes.

NOTE: Listed Price is for Supply only. Fitting Charges & Accessory (Winch , Round LED Driving Lights if required) not included in the price.Â If you need a quote for both supply and fitting please contact us ( 02 9569 4217 ) or Email: service@fastfitbullbars.com.au

STOCK LEVELS MAY CHANGE PLEASE CHECK BEFORE ORDERING.

Additional information

Weight	14 kg
Dimensions	101 × 40 × 69 cm
MAKE	GREAT WALL MOTORS
MODEL	X200
SERIES	04/11-07/15

Brand

ECB

ECB BULLBAR

East Coast Bullbars are the leading manufacturer of alloy frontal protection products, which are designed and manufactured right here in Australia. East Coast Bullbars utilise a hi-tensile alloy, which is industry leading in thickness and strength that have been proven in their products for almost 50 years. ECB’s frontal protection products are designed and built to maximise strength and protection in the event of an animal strike and the hi-tensile alloy performs extremely well under stress to provide the best protection for you, your family, and your vehicle, that will never rust, and avoid corrosion. ECB’s hi-tensile alloy consistently maintains the best protection for your vehicle now and long into the future. Additional Benefits of an Alloy East Coast Bullbar include:

Exclusive Lifetime Warranty
ADR Compliant & Airbag Compatible
Australian Made
Hi-Tensile Alloy With Industry Leading Material Thickness
Specifically Engineered 8mm Steel Mounts
LED Indicator/Park lights/DRL’s
Premium Range of Finishes
Won’t affect New Vehicle Warranty
Almost 50 years experience in the Industry

The ECB bull bar is a prime example of their commitment to safety and quality. ECB’s hi-tensile alloy consistently maintains the best protection for your vehicle now and long into the future. Incorporating the ECB bullbar into your vehicle ensures enhanced safety with its superior design and construction.
